POOL FILTER INSTALLATION 4 BAG AQUA MAX (BLACK)

Product Description

The Aqua Max 4 Bag Pool Filter Installation is a complete supply and installation service for pool owners in Gauteng East who need a larger replacement filter for a residential swimming pool. This service includes the black Aqua Max 4 Bag sand filter, selected filter media, old filter removal, standard installation labour, pipework adjustments and basic testing after installation.

This installation is suited to pools from 50,000 litres to 100,000 litres, provided the existing pump, pipework, filter position and pool system are suitable. The supplied information recommends matching this filter with a 1.1kW pool pump to support correct filtration performance and warranty validity.

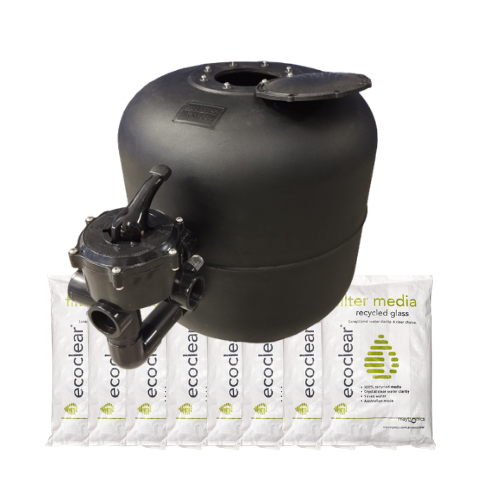

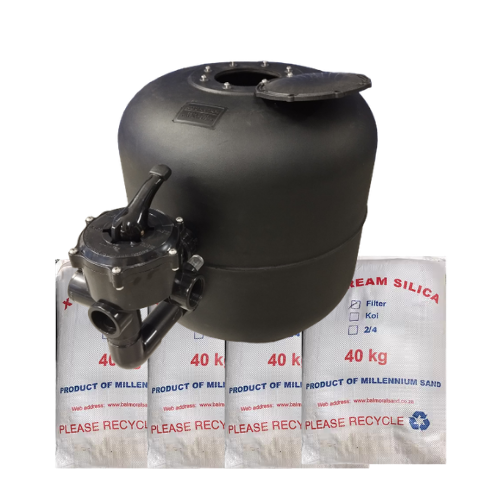

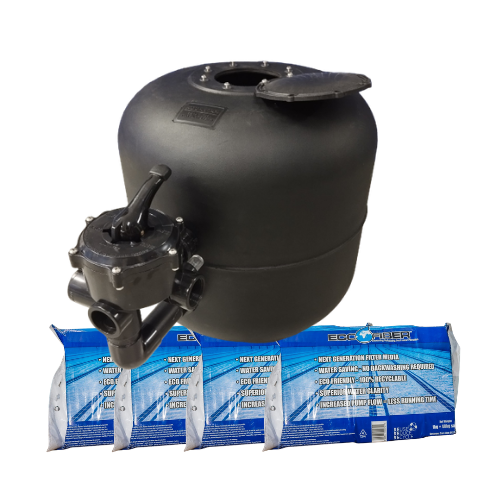

The Aqua Max 4 Bag filter can be installed with silica sand, Eco Clear glass or Eco Fibre sponge media, giving the customer a choice of filter media based on their pool care preference. It is a practical replacement option for pool owners who want to remove an old filter, refresh the media and have the new filter connected properly to the existing system.

This is a supply and installation package, not a supply only filter listing. The installation is based on using the existing filter position where suitable, with the new filter installed on a flat surface only. Any extra plumbing, pump replacement, electrical work, site preparation or repairs to faulty existing infrastructure must be quoted separately before work is done.

FAQs

What is included in the Aqua Max 4 Bag filter installation?

This service includes the black Aqua Max 4 Bag filter, selected filter media, old filter removal where suitable, old media removal, standard labour, pipework adjustments up to 2 metres, fittings, unions and basic system testing.

Is this a supply only product or a full installation service?

This is a full supply and installation service. The customer receives the physical filter, selected media and the standard installation work.

What pool size is this 4 Bag Aqua Max filter suitable for?

This listing is suited to pools from 50,000 litres to 100,000 litres, depending on pump size, plumbing condition, filter position and the full pool system layout.

What pump size should be used with this filter?

The supplied information recommends using this filter with a 1.1kW pool pump. Correct pump and filter matching is important for performance and warranty validity.

Can I choose the filter media?

Yes. The customer can choose between silica sand, Eco Clear glass or Eco Fibre sponge media.

Does the service include removing the old filter?

Yes. The service includes dismantling and removal of the old above ground pool filter where site conditions allow safe and practical removal.

Does the service include old media removal?

Yes. The old filter media is removed before the existing filter is disconnected and replaced.

Does the installation include pipework?

Yes. Standard pipework adjustments up to 2 metres are included, together with fittings and unions required for a standard replacement installation.

What fittings are used during installation?

The supplied information states that the installation uses 50mm PVC fittings with Tangit solvent weld. Special adaptors are provided where poly pipe is present.

Are unions included?

Yes. The new filter installation includes three unions, which can help make future maintenance or replacement work easier.

Can this filter be installed with poly pipe?

Yes. Special adaptors are provided for installations involving poly pipe, provided the existing setup is suitable.

Does this filter installation include electrical work?

No. This is a filter installation service. Electrical repairs, DB board changes, timer replacement and pump electrical faults are excluded unless separately quoted.

What is excluded from the standard installation?

The standard installation excludes major plumbing changes, DB board changes, timer replacement, electrical repairs, waste line changes, water supply changes, long pipe runs, pump room rebuilding, concrete work, pump replacement and repairs to faulty existing infrastructure.

What warranty is included?

The installation workmanship is covered by a 1 year warranty. The filter tank carries a 2 year manufacturer defects warranty, and the multiport valve and fittings carry a 1 year warranty.

Service Inclusions

This installation service includes:

Supply of the black Aqua Max 4 Bag sand filter

Choice of filter media: silica sand, Eco Clear glass or Eco Fibre sponge media

Removal of the old above ground pool filter, where conditions allow

Removal of old filter media

Travel within the Gauteng East service area

Standard installation labour

Pipework adjustments up to 2 metres

50mm PVC fittings with Tangit solvent weld

Three unions for easier future maintenance

Special adaptors where poly pipe is present

Filling the new filter with the selected filter media

Final assembly and basic testing for leaks and operation

Work Summary

The installation normally starts with a basic inspection of the existing filter setup, including the old filter, lid area, gasket, connections, pipework and installation position.

The old filter media is removed first. The existing above ground pool filter is then disconnected and removed where the site allows safe access.

The new Aqua Max 4 Bag sand filter is positioned in the same place as the old filter where suitable. The filter must be installed on a flat surface.

The required fittings and three unions are installed. The pipework is then reconnected to the pool’s existing pump and filtration setup.

The chosen filter media is added to the new filter. The filter is closed, the multiport valve is checked, and the system is tested for leaks and basic operation.

Exclusions

This standard installation does not include major plumbing changes, DB board changes, timer replacement, electrical fault repairs, waste line changes, water supply changes, long pipe runs beyond the included allowance, pump room rebuilding, concrete work, new pump installation unless specifically included, or repairs to faulty existing infrastructure.

This service also does not include moving the filter to a new position, preparing an unsuitable surface, replacing a faulty pump, repairing old leaking pipes, or correcting incorrect existing plumbing unless quoted separately.

Any extra work must be quoted separately before it is done.

Terms and Conditions

This installation service is available in Gauteng East.

Installation normally takes place within 2 to 3 working days after receipt of order, depending on scheduling and site readiness.

The installation area must be cleared and ready before the team arrives.

The installation is based on using the existing filter position, plumbing and pool system infrastructure, provided they are safe, suitable and in working condition.

The new filter is installed on a flat surface only.

This listing is intended for pools from 50,000 litres to 100,000 litres using a 1.1kW pool pump, subject to final site suitability.

Correct pump and filter matching is important. Using the wrong pump size may affect filtration performance and may affect warranty validity.

Installations on plots and farms within Gauteng may carry a surcharge.

The installation workmanship is covered by a 1 year installation workmanship warranty.

The filter tank carries a 2 year manufacturer defects warranty.

The multiport valve and fittings carry a 1 year warranty.

The supplied service information also notes a commitment to beat any written quote. Final price matching should be handled according to the written quote received and the business’s approval process.

Technical Specifications and Compatibility

Product Details

Product Name: Pool Filter Installation 4 Bag Aqua Max Black
Brand: Aqua Max
Product Type: Above ground swimming pool sand filter installation
Filter Size: 4 Bag
Colour: Black
Recommended Pool Size: 50,000L to 100,000L
Filter Media Options: Silica sand, Eco Clear glass or Eco Fibre sponge media
Installation Type: Supply and standard installation
Service Area: Gauteng East

Motor and Performance

This product is a pool filter, not a pool pump.

Recommended Pump Match: 1.1kW pool pump
Performance Note: Final filtration performance depends on the existing pump, pipework, filter media choice, pool volume, water condition and full pool system layout.

Electrical Details

No electrical specifications are supplied for this product because it is a filter installation service.

Electrical repairs, DB board changes, timer replacement and pump electrical faults are excluded unless quoted separately.

Plumbing and Build

Tank Type: Seamless one piece moulded polyethylene tank
Valve Type: Side mounted multiport valve
Pipework Included: Up to 2 metres of pipework adjustment
Fittings: 50mm PVC fittings with Tangit solvent weld
Unions Included: Three unions
Poly Pipe Adaptors: Included where applicable
Installation Surface: Flat surface only

Pool Compatibility

Pool Size Compatibility: 50,000L to 100,000L
Pump Compatibility: 1.1kW pool pump
Filter Media Compatibility: Silica sand, Eco Clear glass or Eco Fibre sponge media
Pool Surface Compatibility: This product is not limited to one pool surface in the supplied information. Final suitability depends on the existing pool system and installation setup.

Installation Conditions

Service Area: Gauteng East
Lead Time: Normally 2 to 3 working days after receipt of order
Site Preparation: Installation area must be cleared and ready
Surface Requirement: Flat surface only
Existing Infrastructure: Existing plumbing must be suitable and in working condition
Surcharge Note: Plots and farms within Gauteng may carry a surcharge
Installation Warranty: 1 year workmanship warranty
Product Warranty: 2 year manufacturer defects warranty on tank
Valve and Fittings Warranty: 1 year warranty on multiport valve and fittings

What’s in the Box

Physical Product Contents

Black Aqua Max 4 Bag sand filter

Side mounted multiport valve

Required standard fittings supplied with the installation

Selected filter media: silica sand, Eco Clear glass or Eco Fibre sponge media

Installation Service Contents

Old above ground filter removal where conditions allow

Old filter media removal

Professional standard installation

Up to 2 metres of pipework adjustment

Three unions

50mm PVC fittings

Tangit solvent weld

Special adaptors for poly pipe where applicable

Travel and labour within the Gauteng East service area

Final assembly and basic leak testing
