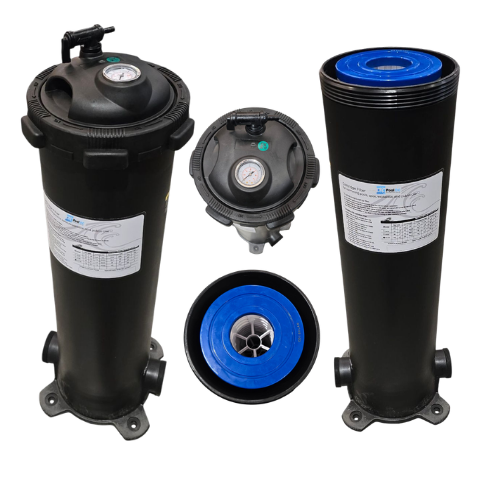

CARTRIDGE POOL FILTER INSTALLATION FOR POOLS UP TO 45,000L

Product Description

The GL50 Crystal Clear Cartridge Pool Filter Installation is a complete supply and installation service for pool owners in Gauteng East who need a cartridge pool filter replacement for a residential swimming pool. This service includes the black GL50 Crystal Clear cartridge pool filter, high capacity pleated cartridge, standard installation labour, old filter removal where suitable, pipework adjustments and basic testing after installation.

The GL50 is suitable for residential pools up to 45,000 litres, depending on pump size, circulation layout, pipework condition and the full pool system setup. The supplied installation information recommends matching this filter with a 0.75kW pool pump to support correct filtration performance and warranty validity.

This cartridge filter is designed to capture fine dirt and debris using a 4.7 square metre pleated cartridge element. Unlike a sand filter, it does not need backwashing. The cartridge is removed, rinsed and reused, helping reduce water wastage while keeping maintenance simple for the pool owner.

The GL50 can be used as a standalone filtration system or installed after a sand filter as a polishing stage to further improve water clarity. It is suitable for residential pools, spas, water features and light commercial applications where fine filtration is required.

This filter is best suited to indoor pools, covered pools, regularly maintained pools and outdoor pools with a lower debris load. It is not the most practical option for pools surrounded by heavy trees, large gardens, constant leaf fall or high debris conditions, as the cartridge may require more frequent cleaning.

This is a supply and installation package, not a supply only product listing. The installation is based on using the existing above ground filter position where suitable, with the new filter installed on a flat surface only. Any extra plumbing, pump replacement, electrical work, site preparation or repairs to faulty existing infrastructure must be quoted separately before work is done.

FAQs

What is included in the GL50 Crystal Clear cartridge pool filter installation?

This service includes the black GL50 Crystal Clear cartridge filter, high capacity pleated cartridge, old filter removal where suitable, standard installation labour, pipework adjustments up to 2 metres, fittings, two unions and basic testing.

Is this a supply only product or a full installation service?

This is a full supply and installation service. The customer receives the physical cartridge filter, cartridge element and standard installation work.

What pool size is the GL50 cartridge filter suitable for?

The GL50 is suitable for residential pools up to 45,000 litres, depending on pump size, circulation layout, pipework condition, debris load and the full pool system setup.

What pump size should be used with this filter?

The supplied installation information recommends using this filter with a 0.75kW pool pump. Correct pump and filter matching is important for filtration performance and warranty validity.

Does the GL50 cartridge filter require backwashing?

No. Cartridge filters do not require backwashing. Cleaning is done by removing the cartridge, rinsing it and refitting it once clean.

How does this filter help reduce water usage?

Because the GL50 does not require backwashing, less water is wasted during routine cleaning compared with a traditional sand filter setup.

How do I know when the cartridge needs cleaning?

The cartridge should be cleaned when the pressure gauge rises or when water flow decreases. Regular inspection is also recommended during busy swimming periods.

Can the cartridge be reused?

Yes. The pleated cartridge is reusable and designed for repeated cleaning cycles. It should be replaced when worn, damaged or no longer cleaning properly.

Can this filter be used after a sand filter?

Yes. The GL50 can be installed as a secondary polishing filter after a sand filter to help refine water quality and improve clarity, provided the full system layout is suitable.

Is this filter suitable for spas and water features?

Yes. The supplied information states that the GL50 is suitable for spas, water features and light commercial applications requiring fine filtration.

Is this filter suitable for pools with heavy leaves?

This filter is not the best option for pools with heavy leaf fall, large trees or high garden debris. It is better suited to cleaner pool areas with regular maintenance.

Does the service include removing the old filter?

Yes. The service includes dismantling and removal of the old above ground pool filter where site conditions allow safe and practical removal.

Does the installation include pipework?

Yes. Standard pipework adjustments up to 2 metres are included, together with the required fittings and two unions for a standard replacement installation.

Does this filter installation include electrical work?

No. This is a filter installation service. Electrical repairs, DB board changes, timer replacement and pump electrical faults are excluded unless separately quoted.

What warranty is included?

The installation workmanship is covered by a 1 year warranty. The earlier supplied installation information states that the filter tank carries a 2 year manufacturer defects warranty.

Service Inclusions

This installation service includes:

Supply of the black GL50 Crystal Clear cartridge pool filter

Supply of the high capacity pleated cartridge

Built in pressure gauge

Air release valve

Mounting base

Removal of the old above ground pool filter, where conditions allow

Old media removal where applicable

Travel within the Gauteng East service area

Standard installation labour

Pipework adjustments up to 2 metres

50mm PVC fittings with Tangit or similar high pressure solvent weld

Two unions for easier future maintenance

Special adaptors where poly pipe is present

Final assembly and basic testing for leaks and operation

Work Summary

The installation normally starts with a basic inspection of the existing filter setup, including the filter position, plumbing layout, pump connection, visible pipe condition and available working space.

The old above ground pool filter is disconnected and removed where site conditions allow. If the old filter contains sand, glass or another filter media, old media removal is handled where applicable.

The new GL50 Crystal Clear cartridge pool filter is positioned in the existing above ground filter area where suitable. The filter must be installed on a flat surface.

The required fittings and two unions are installed. The GL50 filter is then connected to the existing pool plumbing setup using 50mm connections where suitable.

The cartridge element, air release valve and pressure gauge are checked. The system is started and tested for leaks, flow and basic operation.

Exclusions

This standard installation does not include major plumbing changes, DB board changes, timer replacement, electrical fault repairs, waste line changes, water supply changes, long pipe runs beyond the included allowance, pump room rebuilding, concrete work, new pump installation unless specifically included, or repairs to faulty existing infrastructure.

This service also does not include moving the filter to a new position, preparing an unsuitable surface, replacing a faulty pump, repairing old leaking pipes, correcting incorrect existing plumbing, or ongoing cartridge cleaning and maintenance unless quoted separately.

Any extra work must be quoted separately before it is done.

Terms and Conditions

This installation service is available in Gauteng East.

Installation normally takes place within 2 to 3 working days after receipt of order, depending on scheduling and site readiness.

The installation area must be cleared and ready before the team arrives.

The installation is based on using the existing above ground filter position, plumbing and pool system infrastructure, provided they are safe, suitable and in working condition.

The new filter is installed on a flat surface only.

This listing is intended for pools up to 45,000 litres using a 0.75kW pool pump, subject to final site suitability.

This cartridge filter is best suited to pools with regular maintenance and lower debris load. It is not recommended as the first choice for heavy leaf areas or gardens with large amounts of plant debris.

Installations on plots and farms within Gauteng may carry a surcharge.

The installation workmanship is covered by a 1 year installation workmanship warranty.

The filter tank carries a 2 year manufacturer defects warranty based on the earlier supplied installation information.

Technical Specifications and Compatibility

Product Details

Product Name: GL50 Crystal Clear Cartridge Pool Filter Installation
Model: GL50
Product Type: Cartridge pool filter supply and installation
Filter Type: Cartridge filtration
Colour: Black
Maximum Pool Size: Up to 45,000 litres
Filter Area: 4.7 square metres
Cartridge Included: Yes
Installation Type: Supply and standard installation
Service Area: Gauteng East

Motor and Performance

This product is a pool filter, not a pool pump.

Recommended Pump Match: 0.75kW pool pump
Recommended Flow Rate: 95 litres per minute
Maximum Working Pressure: 300 kilopascals
Performance Note: Final filtration performance depends on pump size, plumbing layout, cartridge condition, debris load, pool volume, maintenance routine and the full pool system setup.

Cartridge Filter Suitability

Best Suited For: Residential pools, indoor pools, covered pools, spas, water features and light commercial applications
Also Suitable As: Standalone filtration or secondary polishing filtration after a sand filter
Less Suited For: Heavy leaf areas, gardens with many trees, high plant debris and pools that are not cleaned regularly
Maintenance Note: The cartridge element must be removed, rinsed and reused as part of normal pool maintenance.

Electrical Details

No electrical specifications are supplied for this product because it is a filter installation service.

Electrical repairs, DB board changes, timer replacement and pump electrical faults are excluded unless quoted separately.

Plumbing and Build

Connection Size: 50mm
Dimensions: 675mm x 235mm x 402mm
Housing Material: UV resistant polymer
Pipework Included: Up to 2 metres of pipework adjustment
Fittings: 50mm PVC fittings with Tangit or similar high pressure solvent weld
Unions Included: Two unions
Poly Pipe Adaptors: Included where applicable
Pressure Gauge: Built in
Air Release Valve: Included
Mounting Base: Included
Installation Surface: Flat surface only
Installation Position: Existing above ground filter position where suitable

Pool Compatibility

Pool Size Compatibility: Up to 45,000 litres
Pump Compatibility: 0.75kW pool pump recommended in the supplied installation information
Pool Surface Compatibility: This product is not limited to one pool surface in the supplied information. Final suitability depends on the existing pool system and installation setup.
System Compatibility: Final suitability depends on the existing pump, pipework, filter position, pool size, water condition and debris load.

Installation Conditions

Service Area: Gauteng East
Lead Time: Normally 2 to 3 working days after receipt of order
Site Preparation: Installation area must be cleared and ready
Surface Requirement: Flat surface only
Existing Infrastructure: Existing plumbing must be suitable and in working condition
Surcharge Note: Plots and farms within Gauteng may carry a surcharge
Installation Warranty: 1 year workmanship warranty
Product Warranty: 2 year manufacturer defects warranty on the filter tank based on earlier supplied installation information

What’s in the Box

Physical Product Contents

GL50 Crystal Clear cartridge filter housing

High capacity pleated cartridge

Built in pressure gauge

Air release valve

Mounting base

Installation Service Contents

Old above ground filter removal where conditions allow

Old media removal where applicable

Professional standard installation

Up to 2 metres of pipework adjustment

Two unions

50mm PVC fittings

Tangit or similar high pressure solvent weld

Special adaptors for poly pipe where applicable

Travel and labour within the Gauteng East service area

Final assembly and basic leak testing

Conclusion

The GL50 Crystal Clear Cartridge Pool Filter Installation is a practical choice for pool owners who want fine filtration, lower water usage and simple cartridge maintenance. It is especially useful for well maintained residential pools, indoor pools, covered pools, spas, water features and systems where clearer water polishing is required.

For pools with the correct pump, suitable plumbing and manageable debris load, the GL50 offers dependable filtration with the convenience of a removable, reusable cartridge element.
