POOL WEIR EARTHECO WHITE WITH FLAP

POOL WEIR STANDARD EARTHECO WHITE WITH FLAP

Product Description

The EARTHeCO Standard White Pool Weir with Flap is an essential suction-side component for gunite, hand-packed concrete and marblite swimming pools.

A pool weir is installed into the pool wall and draws surface water toward the filtration system. This helps remove leaves, grass, insects, dust and floating debris before it settles on the floor of the pool.

This EARTHeCO standard weir also houses the leaf basket and vacuum lid, allowing it to perform three important functions:

1. Surface skimming
2. Debris collection
3. Suction connection for compatible automatic pool cleaners

The weir is manufactured from quality plastic materials and has a reinforced ribbed body for strength once installed into the pool structure. It is commonly used in residential concrete pool systems where a reliable standard weir is needed for day-to-day circulation and cleaner operation.

What Does a Pool Weir Do?

A pool weir is part of the suction side of the pool plumbing system.

Water is drawn from the pool surface through the weir opening, into the basket area and then through the suction line toward the pump. From the pump, the water moves through the filter and then returns to the pool through the return lines.

If solar heating or a pool heater is installed, water may also pass through those systems before returning to the pool.

A correctly installed weir helps with:

• Surface debris removal
• Better circulation
• Cleaner pool water
• Improved filtration
• Automatic pool cleaner suction
• Protection of the pump basket from larger debris
• Better chemical distribution through circulation

What Is Included?

The supplied product information lists the following included components:

• 1 x Weir collar
• 1 x Deck lid
• 1 x Vac lid
• 1 x Basket
• 1 x Weir flap
• 1 x Standard EARTHeCO weir body

Key Product Functions

Surface Skimming

The weir helps draw floating debris into the basket before it sinks.

This can include:

• Leaves
• Grass
• Dust
• Bugs
• Seeds
• Floating organic debris
• Fine surface dirt

Good skimming reduces manual cleaning and helps the filter system work more effectively.

Leaf Basket Protection

The basket catches larger debris before it travels toward the pump basket.

This helps reduce the chance of larger leaves and debris entering the pump leaf trap too quickly.

The basket must be cleaned regularly, especially after windy weather, storms, heavy leaf fall or garden maintenance near the pool.

Automatic Pool Cleaner Connection

The included vacuum lid allows compatible suction-side automatic pool cleaners to connect to the weir.

The low-positioned vac lid is designed to reduce the chance of air being pulled into the suction line while the cleaner is operating.

A cleaner still needs correct hose length, correct suction, clean baskets and a suitable pump and filter setup to work properly.

Water Circulation Support

The weir assists circulation by drawing water from the pool surface into the suction system.

Correct circulation is important for:

• Clearer water
• Better filtration
• Chemical movement
• Reduced surface debris
• Cleaner operation
• Lower risk of stagnant surface water

Key Features Explained

Adjustable Deck Collar

The deck collar has an adjustable height, allowing the installer to set it according to the surrounding paving, coping or tile thickness.

This is useful on new builds and replacement jobs where the final surface level may vary.

Reinforced Ribbed Housing

The body has reinforced ribs for added structural strength.

This helps support the weir once it is built into the concrete or marblite pool structure.

High Surface Area Leaf Basket

The basket is designed to catch larger debris while still allowing water to pass through to the pump.

Regular cleaning is important to maintain suction and prevent flow restriction.

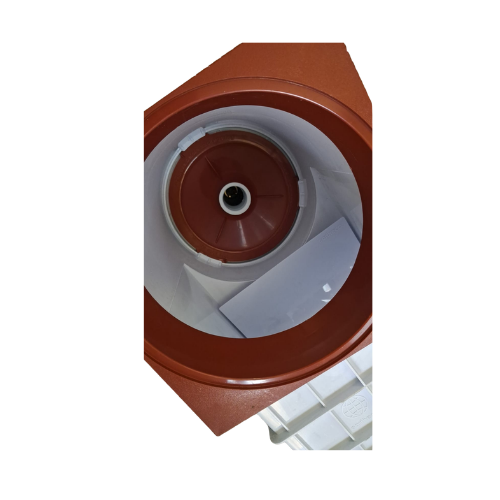

Secure Vacuum Lid

The vacuum lid is designed to remain in position during cleaner use.

It helps keep the automatic cleaner hose connected and prevents larger debris from bypassing the basket area.

Included Weir Flap

The weir flap helps manage water movement into the weir and supports effective surface skimming.

The flap should move freely and should be checked during routine pool maintenance.

Compatibility Notes

This product is designed for gunite, concrete and marblite pool installations.

Before ordering as a replacement, confirm:

• Existing weir size
• Pool construction type
• Weir opening dimensions
• Plumbing outlet position
• Deck lid size
• Basket fitment
• Vacuum lid fitment
• Waterline height
• Suction line condition
• Compatibility with the pool cleaner setup

Do not assume that every standard weir will fit every pool. Weir bodies can differ by brand, age, installation style and pool shell design.

Installation Notes

Professional installation is recommended because a weir is built into the pool structure and forms part of the suction plumbing system.

Correct installation helps prevent:

• Water leaks
• Air leaks
• Poor suction
• Weak skimming
• Automatic pool cleaner issues
• Structural problems around the weir
• Incorrect deck lid height
• Poor waterline alignment

The weir must be installed at the correct height relative to the normal pool water level. If the water level is too low, the pump may draw air. If the water level is too high, surface skimming may be reduced.

Maintenance Notes

To keep the weir working correctly:

• Clean the weir basket regularly
• Check the basket for cracks
• Check that the weir flap moves freely
• Keep the deck lid secure
• Keep the vacuum lid clean
• Remove trapped leaves after storms
• Do not allow the basket to block completely
• Keep pool water at the correct level
• Check for air bubbles returning to the pool
• Replace damaged baskets, flaps or lids
• Check cleaner suction if the automatic cleaner stops moving

FAQs

What is the EARTHeCO Standard White Pool Weir with Flap?

It is a standard pool weir for gunite, concrete and marblite swimming pools.

What does a swimming pool weir do?

It draws surface water into the suction line, collects floating debris in a basket and provides a connection point for compatible suction pool cleaners.

Is this weir for concrete pools?

Yes. It is designed for gunite, hand-packed concrete and marblite pool systems.

Is it suitable for fibreglass pools?

No. This listing is not for fibreglass pool shells.

Does the weir include a flap?

Yes. The weir flap is included.

Why is the weir flap important?

The flap helps guide surface water into the weir and supports normal skimming action.

Does it include a basket?

Yes. The weir basket is included.

What does the basket do?

The basket catches leaves and larger debris before they travel further into the pump system.

Does it include a vacuum lid?

Yes. A vac lid is included.

What is the vacuum lid used for?

The vacuum lid allows a compatible suction pool cleaner hose to connect to the weir.

Does it include the deck lid?

Yes. A deck lid is included.

Does it include the collar?

Yes. A weir collar is included.

Is the deck collar adjustable?

Yes. The collar has an adjustable height to suit different paving or tile thicknesses.

What colour is the weir?

The main body is white, with a brown deck lid and collar shown in the supplied product images.

What pool size is it suitable for?

The supplied product information states that it is suitable for smaller pools and splash pools around 40,000L to 50,000L.

Can it be used on larger pools?

It depends on the pool design, pump, filter, plumbing and required suction flow. Confirm suitability with a pool professional.

What are the dimensions?

The supplied dimensions are approximately 49cm high, 40cm long and 25cm wide.

Can I use it with an automatic pool cleaner?

Yes, if the automatic pool cleaner, suction line, pump and vac lid setup are compatible.

What does APC mean?

APC refers to an automatic pool cleaner.

Does the weir improve pool circulation?

A correctly installed weir supports surface circulation and helps draw floating debris into the filtration system.

Will it stop all leaves from entering the pool?

No. It helps collect floating debris, but pool maintenance, brushing, leaf removal and filtration are still needed.

Can I install this myself?

Professional installation is recommended because the weir forms part of the pool shell and suction plumbing.

Can I replace an old weir with this model?

Yes, only if the pool type, dimensions and plumbing align with this weir. Confirm before ordering.

What should I check before replacing a weir?

Check the pool construction, existing weir size, plumbing outlet, deck opening, waterline position, basket type and lid dimensions.

What happens if the weir basket is full?

Water flow may reduce, suction may weaken and the pump may be placed under strain.

What happens if the water level is too low?

The weir may draw air into the suction line, which can cause poor pump performance and possible pump damage.

What happens if the water level is too high?

Surface skimming may be less effective.

Does the weir connect directly to the pump?

The weir connects to the suction line, which then draws water toward the pump.

Does water enter the pool through the weir?

No. In normal filtration, water is drawn from the pool through the weir toward the pump. Water returns to the pool through return lines.

Does this product include pipe fittings?

No separate pipe fittings are specified in the supplied product information.

Is warranty information supplied?

The supplied information states a 2-month ex-factory warranty under normal operating conditions from date of purchase.

Is the warranty affected by poor installation?

Improper installation, incorrect use or installation damage may affect warranty support.

Key Features and Benefits

• EARTHeCO standard pool weir
• White body
• Brown deck lid and collar
• Designed for gunite pools
• Designed for concrete pools
• Suitable for marblite pool systems
• Includes weir flap
• Includes basket
• Includes vacuum lid
• Includes deck lid
• Includes collar
• Surface skimming function
• Helps collect leaves
• Helps remove floating debris
• Suction point for filtration
• Connection point for compatible automatic pool cleaners
• Adjustable deck collar height
• Suitable for different paving or tile thicknesses
• Reinforced ribbed housing
• Quality plastic construction
• Low-positioned vacuum lid
• Helps reduce air draw during cleaner use
• Suitable for many 40,000L to 50,000L smaller pools or splash pools
• Professional installation recommended

Real World Applications / Ideal For

• Gunite swimming pools
• Hand-packed concrete pools
• Marblite pool systems
• Smaller residential pools
• Splash pools
• Pools around 40,000L to 50,000L
• New pool builds
• Pool renovations
• Weir replacements where dimensions match
• Pools using suction automatic pool cleaners
• Pools needing surface skimming
• Pools with leaf and garden debris
• Pool builders
• Pool repair technicians
• Homeowners replacing damaged weir parts
• South African residential pool systems

Technical Specifications

Specification	Details
Product Name	Pool Weir Standard EARTHeCO White with Flap
Brand	EARTHeCO
Product Type	Swimming pool weir / skimmer
Pool Type	Gunite, concrete and marblite pool systems
Body Colour	White
Deck Lid Colour	Brown
Collar Colour	Brown
Weir Flap	Included
Weir Basket	Included
Vac Lid	Included
Deck Lid	Included
Weir Collar	Included
Main Function	Surface skimming and suction-side debris collection
Cleaner Connection	Compatible suction automatic pool cleaners
Suitable Pool Guidance	Smaller pools and splash pools around 40,000L to 50,000L
Height	49cm
Length	40cm
Width	25cm
Housing	Reinforced plastic body
Deck Collar	Adjustable height
Installation	Built-in gunite or concrete pool installation
Warranty	2-month ex-factory warranty as supplied

Installation / Usage Notes

• Confirm the pool is gunite, concrete or marblite before ordering.
• Confirm existing weir dimensions before replacement.
• Confirm suction plumbing position.
• Install at the correct waterline level.
• Seal correctly to prevent water leaks.
• Seal suction plumbing correctly to prevent air leaks.
• Set the deck collar to match paving or tile height.
• Keep the deck lid accessible for maintenance.
• Keep the weir basket clean.
• Check the flap movement during maintenance.
• Do not operate with a completely blocked basket.
• Keep the pool water level at the correct height.
• Use the vac lid only with compatible suction cleaner systems.
• Professional installation is recommended.

Warranty Information

The supplied product information states a 2-month ex-factory warranty under normal operating conditions from date of purchase.

Warranty may not apply where failure is caused by:

• Incorrect installation
• Incorrect pool type
• Structural movement
• Poor sealing
• Physical damage
• Misuse
• Chemical damage outside normal pool operating conditions
• Incorrect cleaner connection
• Use with incompatible parts
• Failure to maintain basket and water level

Confirm the current warranty terms with the supplier at the time of purchase.

Conclusion

The EARTHeCO Standard White Pool Weir with Flap is a practical suction-side weir for gunite, concrete and marblite swimming pools.

It helps skim floating debris, collects leaves in the basket and provides a connection point for compatible automatic pool cleaners.

With its white reinforced body, brown deck lid, adjustable collar, vac lid, basket and included flap, it is well suited to many smaller residential pools and splash pools where a standard concrete pool weir is required.
