POOL SALT CHLORINATOR AQUALIMPID ALS28 BY AQUAGEM

POOL SALT CHLORINATOR AQUALIMPID ALS28 BY AQUAGEM

Product Description

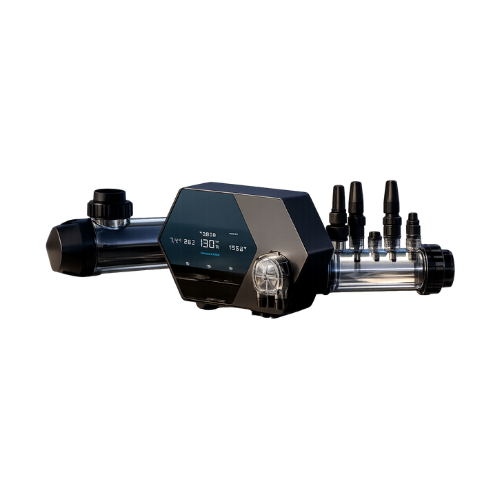

The AquaLimpid ALS28 by Aquagem is a smart salt chlorination system designed for pools from 80 to 110m³.

It is built to simplify saltwater pool management by combining chlorine production, water monitoring, salinity detection, dosing support and app based control in one system. Instead of manually dosing chlorine every few days, the AquaLimpid ALS28 generates chlorine from dissolved salt in the pool water, helping maintain sanitation when the system is correctly installed, configured and maintained.

The ALS28 model is listed with a 28.0 g/h chlorine production rate at 3000ppm salinity. It is designed for pools that fall within the 80 to 110m³ range, making it suitable for larger residential pools in South Africa.

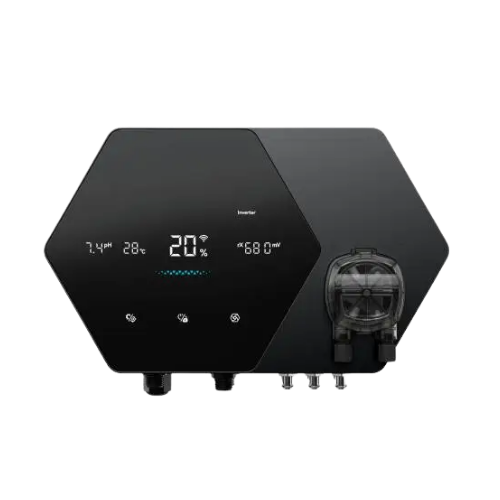

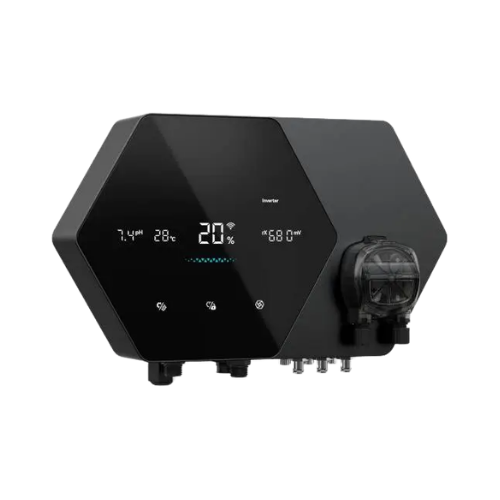

Through the iGarden app, users can monitor supported water parameters and manage the system remotely. The onboard display also provides direct visibility of operating information such as salinity, temperature and production status, depending on the installed configuration.

The AquaLimpid ALS28 includes a self cleaning electrolysis cell, designed to reduce scale buildup through polarity reversal. This helps lower routine maintenance compared with older non self cleaning chlorinators. The listed cell life is up to 10,000 hours, subject to correct salt level, water balance, flow, installation and operating conditions.

What Is the AquaLimpid ALS28?

The AquaLimpid ALS28 is a smart salt chlorinator and water management system.

It is designed to support:

• Saltwater pool sanitation
• Automatic chlorine production
• Salinity monitoring
• pH and ORP monitoring where fitted and configured
• Temperature monitoring
• App based pool control
• Built-in dosing support
• Variable speed pump integration
• Smarter pool equipment automation

It does not replace the pool pump, sand filter, cartridge filter, brushing, backwashing, water testing or normal pool care.

What Does a Salt Chlorinator Do?

A salt chlorinator uses dissolved salt in the pool water to produce chlorine through an electrolysis cell.

This chlorine then sanitises the pool water. The system reduces the need to manually add chlorine as often, but the pool still needs correct water balance, filtration, pH control, stabiliser management and routine testing.

Key Features and Benefits

Suitable for Pools from 80 to 110m³

The ALS28 model is sized for swimming pools from 80 to 110m³.

28.0 g/h Chlorine Production

The listed chlorine production rate is 28.0 g/h at 3000ppm salinity.

Smart Salt Chlorination

The system produces chlorine automatically from dissolved pool salt.

Real Time Water Monitoring

The supplied information lists monitoring of key water parameters such as ORP, pH, temperature and salinity where installed and configured.

iGarden App Control

The iGarden app allows supported remote monitoring and control from a mobile device.

Built-In Dosing Pump

The built-in dosing pump supports automated dosing when correctly installed and configured.

Salinity Detection

The system detects and displays salt level information to help keep the pool within the correct operating range.

Self Cleaning Electrolysis Cell

The self cleaning cell helps reduce scale buildup and supports longer cell performance.

Up to 10,000 Hour Cell Life

The listed cell life is up to 10,000 hours, subject to correct installation, use and water conditions.

Turbo Boost Mode

Turbo Boost mode increases chlorine output for higher demand periods, such as after heavy pool use or hot weather.

Variable Speed Pump Integration

The system can integrate with compatible variable speed pumps to support smarter filtration and sanitisation control.

Communication Options

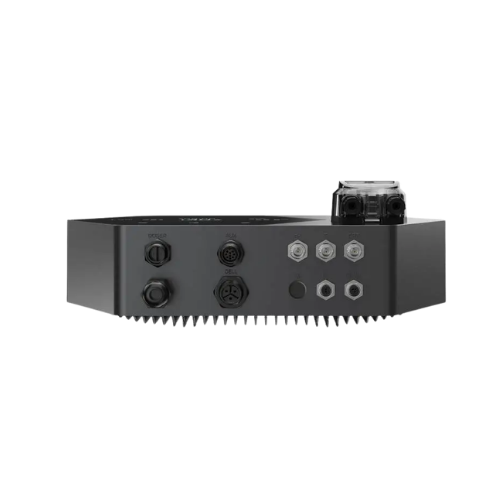

The supplied communication options include MODBUS RS485, Wi-Fi and dry contact.

Dual Low Flow Protection

Dual low flow protection helps protect the unit where insufficient water movement is detected.

IP65 Protection

The control unit is listed with IP65 protection, supporting installation in suitable pool equipment environments.

FAQs

What is the AquaLimpid ALS28?

The AquaLimpid ALS28 is a smart salt chlorinator by Aquagem for pools from 80 to 110m³. It produces chlorine from saltwater and includes smart monitoring, app control and dosing support.

What pool size is the ALS28 suitable for?

The ALS28 is suitable for pools from 80 to 110m³.

How much chlorine does the ALS28 produce?

The listed chlorine production rate is 28.0 g/h at 3000ppm salinity.

What salt level does it need?

The confirmed specification lists a salt level range of 3 to 5 g/L, with 3 g/L recommended.

Does the AquaLimpid ALS28 use normal pool salt?

It is designed for saltwater pools. Use suitable swimming pool salt and follow the supplier or installer’s salt level instructions.

Does it replace chlorine completely?

It produces chlorine from saltwater, so it reduces the need for regular manual chlorine dosing. It does not remove the need for water testing, pH balancing, stabiliser checks, filtration or general pool care.

Does it have pH monitoring?

The supplied product information lists pH monitoring. Correct operation depends on the installed sensor setup and system configuration.

Does it have ORP monitoring?

The supplied product information lists ORP monitoring. ORP readings depend on correct sensor installation, calibration and water conditions.

Does it monitor salinity?

Yes. Salinity detection and monitoring are listed features.

Does it monitor temperature?

Yes. Temperature monitoring is listed in the supplied product information.

Does it include app control?

Yes. The system supports iGarden app control.

What can I do through the iGarden app?

The supplied information states that users can monitor pool conditions, access supported readings, activate Turbo Boost mode and manage settings remotely.

Does it have a built-in dosing pump?

Yes. A built-in dosing pump is listed.

What is the dosing pump used for?

The dosing pump supports automatic chemical dosing when correctly installed and configured. The dosing chemical and setup must be confirmed by the installer.

Does the AquaLimpid ALS28 have a self cleaning cell?

Yes. It has a self cleaning electrolysis cell to help reduce scale buildup.

How long does the cell last?

The listed cell life is up to 10,000 hours. Actual life depends on water balance, salt level, runtime, flow, scale buildup, cleaning and operating conditions.

What is Turbo Boost mode?

Turbo Boost mode temporarily increases chlorine production for periods of higher chlorine demand.

Can it connect to a variable speed pump?

Yes. The supplied information lists variable speed pump integration.

What communication options does it have?

The listed communication options include MODBUS RS485, Wi-Fi and dry contact.

Is it weather resistant?

The control unit is listed with IP65 protection. It should still be installed in a suitable pool equipment area according to the manual.

Does it need professional installation?

Yes. Professional pool and electrical installation is strongly recommended.

Can I install it myself?

Salt chlorinators involve plumbing, electrical connections, sensors and water chemistry setup. Installation should be handled by a qualified pool professional or electrician.

Does it work if there is no water flow?

No. Correct flow is required. The dual low flow protection system helps protect the equipment when insufficient flow is detected.

Does the pool still need a pump and filter?

Yes. A salt chlorinator sanitises the water, but the pool still needs proper circulation and filtration.

Does it make the pool maintenance free?

No. It reduces manual chlorine dosing, but you must still test water, balance pH, check salt level, clean filters, maintain flow and inspect the cell.

Can it be used on any pool?

It is designed for compatible saltwater pool systems within the stated pool volume. Suitability depends on pool size, plumbing, pump flow, pool surface, existing equipment and installer setup.

Key Features and Benefits

• AquaLimpid ALS28 by Aquagem
• Smart salt chlorinator
• Suitable for pools from 80 to 110m³
• 28.0 g/h chlorine production at 3000ppm
• Recommended salinity 3 g/L
• Salinity operating range 3 to 5 g/L
• Automatic chlorine production
• Real time water quality monitoring
• ORP monitoring where installed and configured
• pH monitoring where installed and configured
• Temperature monitoring
• Salinity detection
• iGarden app control
• Built-in dosing pump
• Self cleaning electrolysis cell
• Up to 10,000 hour cell life
• Turbo Boost mode
• Dual low flow protection
• Variable speed pump integration
• MODBUS RS485 communication
• Wi-Fi communication
• Dry contact communication
• IP65 protection
• Quick-change dosing system
• Modern digital display
• Suitable for smart pool equipment setups

Real World Applications / Ideal For

• Residential saltwater pools from 80 to 110m³
• Pool owners wanting automated chlorine production
• Smart pool equipment installations
• Pools with compatible variable speed pumps
• New saltwater pool installations
• Salt chlorinator replacement projects
• Pool owners wanting app based monitoring
• Pool owners wanting salinity visibility
• Larger South African residential pools
• Pools where manual chlorine dosing is inconvenient
• Pool equipment installations handled by professional installers
• OnlinePoolStore salt chlorinator category pages

Technical Specifications

Specification	Details
Product Name	AquaLimpid ALS28 by Aquagem
Product Type	Smart salt chlorinator
Model	ALS28
Recommended Pool Volume	80 to 110m³
Chlorine Production	28.0 g/h at 3000ppm
Recommended Salinity	3 g/L
Salinity Range	3 to 5 g/L
Power Supply	220 to 240V, 50/60Hz
Input Power	158W
Maximum Output Voltage	DC 12V
Operating Ambient Temperature	-5 to 42°C
Operating Water Temperature	10 to 40°C
Salinity Detection Accuracy	±500ppm listed
Self Cleaning Cell	Yes
Self Cleaning Options	2 / 4 / 6 hour options listed
Dosing Pump	Built in
Communication	MODBUS RS485, Wi-Fi, dry contact
Outputs	VS pump control, pump control, filter wash control listed
Inputs	Pool cover signal listed
Cell Life	Up to 10,000 hours
Protection Rating	IP65 listed
App Control	iGarden app
Low Flow Protection	Dual low flow protection listed

Installation / Usage Notes

• Professional installation by a qualified pool technician and electrician is recommended.
• Confirm the pool volume before selecting the ALS28 model.
• The ALS28 is intended for pools from 80 to 110m³.
• Install the chlorinator cell in the correct plumbing position according to the official manual.
• Ensure the pool has correct water flow before operating the unit.
• Maintain salt level within the stated operating range.
• Keep pH, alkalinity, stabiliser and water balance within acceptable pool operating limits.
• Use suitable swimming pool salt only.
• Do not operate the system without adequate water flow.
• Calibrate sensors as required by the installer and user manual.
• Inspect the electrolysis cell periodically, even though it is self cleaning.
• Do not rely only on app readings. Test pool water regularly with a reliable test kit.
• Use Turbo Boost only when needed and according to the manual.
• Keep the control unit protected from flooding, direct spray and harsh exposure where possible.
• Install dosing chemicals safely and only as recommended by a pool professional.
• Confirm compatibility before connecting to variable speed pumps or external automation systems.

Conclusion

The AquaLimpid ALS28 by Aquagem is a smart salt chlorinator for pools from 80 to 110m³, built for pool owners who want automated chlorine production, water monitoring and app based control.

With salinity detection, a self cleaning cell, built-in dosing pump, iGarden app access, Turbo Boost mode, dual low flow protection and variable speed pump integration, it is a strong option for modern saltwater pool systems.
